Circuit board development

Circuit board development

I can take your circuit diagram and produce any quantity and size of finished circuit boards. Using both state-of-the-art computer software and expert human calculation, I will check the design parameters and find the best layout configuration for your circuit function. The boards will be fabricated using the best methods and materials to insure a failure free product.

I can also duplicate obsolete boards manufactured by defunct companies.

All documentation and engineering diagrams will be provided to you. I can specify and source your components for you or use sources you specify. If you like, I can check your engineering to insure all components are operating within proper limits and suggest improvements if necessary.

My quality and value is the best that can be found anywhere.

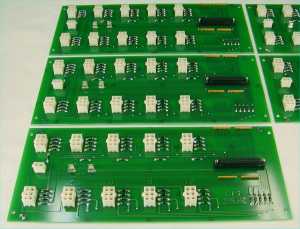

14 inch by 6 inch industrial control circuit boards.
2 sided, 2 oz. copper layers for high current, lpe coating for moisture protection.

I'm here to help.
